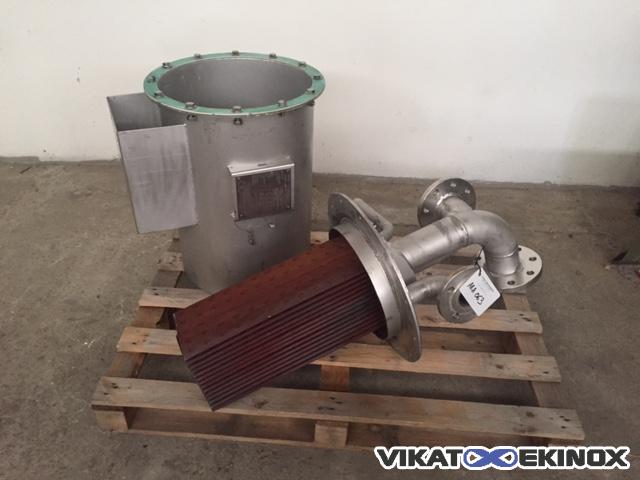

Ziemann plate heat exchanger
1 / 5
Brand : ZIEMANN HENGEL
Ø 415mm height 600mm

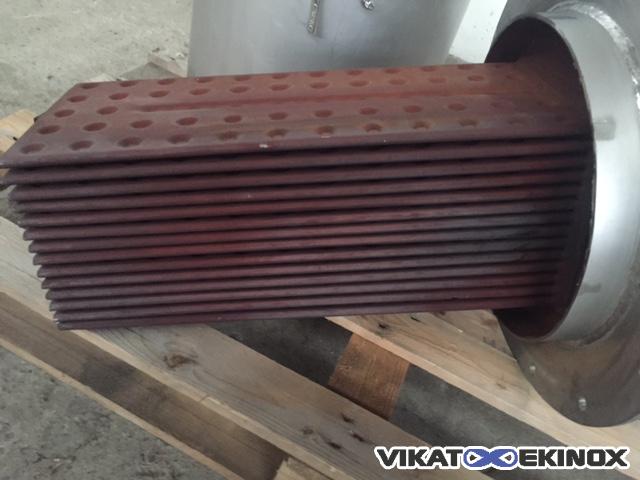

14 plates
volume/ body : 29L volume/plate : 15L
body operating pressure : -1/6 bars
plate operating pressure : 6 bars
operating T° : -30/ +170°C
weight : 105 kg
plate inlet an outlet flange DN80
1x25 1x40
14 plates
volume/ body : 29L volume/plate : 15L
body operating pressure : -1/6 bars
plate operating pressure : 6 bars
operating T° : -30/ +170°C
weight : 105 kg
plate inlet an outlet flange DN80
1x25 1x40
