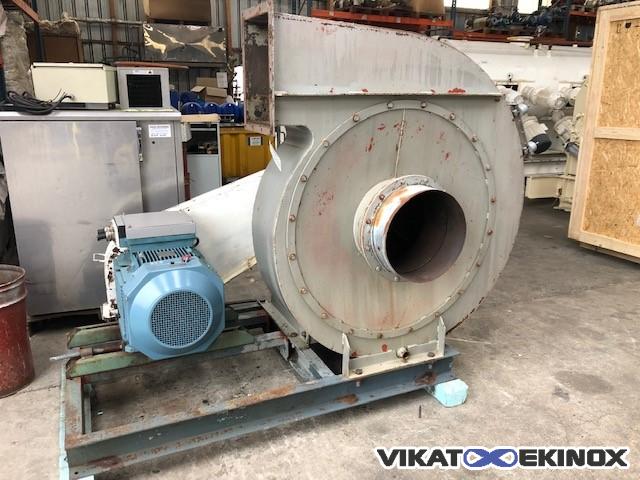

VIM steel centrifugal fan - 45 KW
1 / 7
Brand : VIM
Conveying straight blades
Suction Ø 400 mm
Discharge dim. 395 x 295 mm

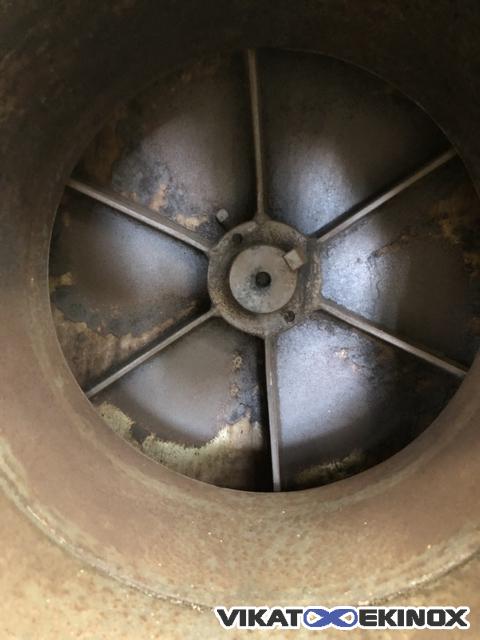

Rotor Ø 1000 mm

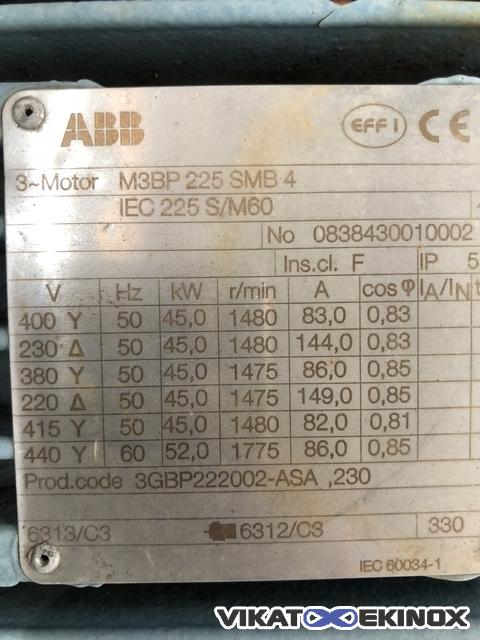

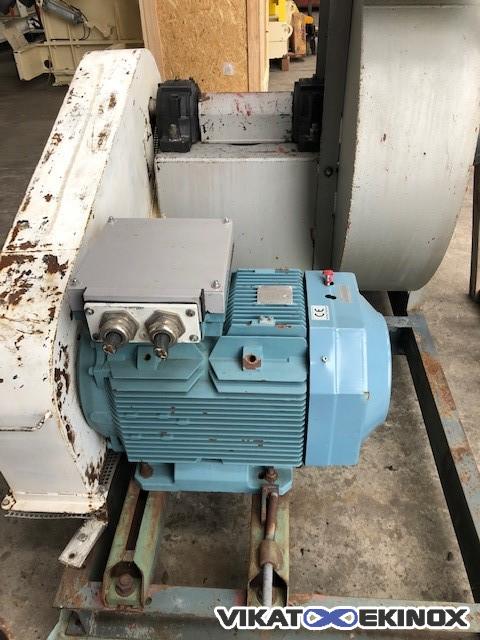

45 kW 1480 rpm 380 V

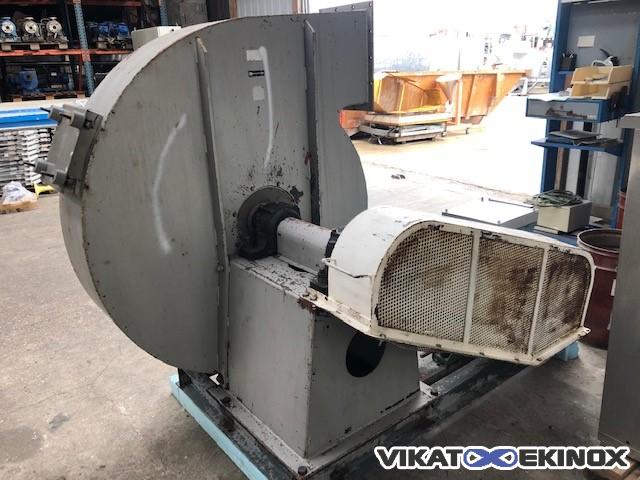

Belt pulley transmission
Overall dimensions : 2150 x 1550 x H. 1700 mm
Suction Ø 400 mm
Discharge dim. 395 x 295 mm
Rotor Ø 1000 mm
45 kW 1480 rpm 380 V
Belt pulley transmission
Overall dimensions : 2150 x 1550 x H. 1700 mm
