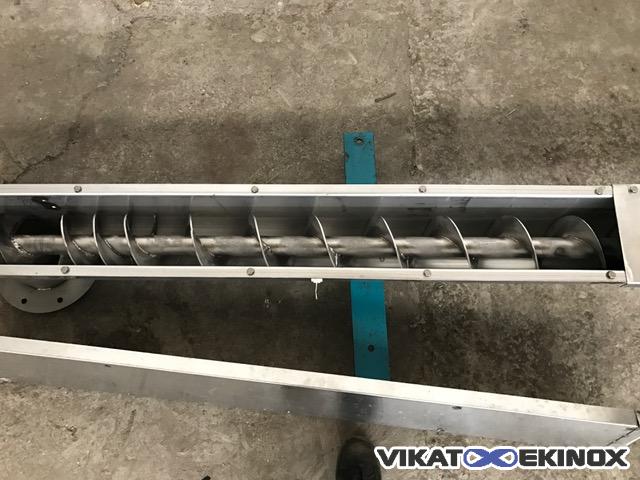

Stainless steel screw conveyor with lump breaker Length 2300 mm
1 / 5
Ø 150 mm
Trough width 155 mm
Trough length : 1940 mm + shredder 340 mm = 2280 mm
Inlet Ø 300 mm - Outlet Ø 150 mm
Overall length 2800 mm
Thickness of turns 5 mm - pitch between turns 140 mm

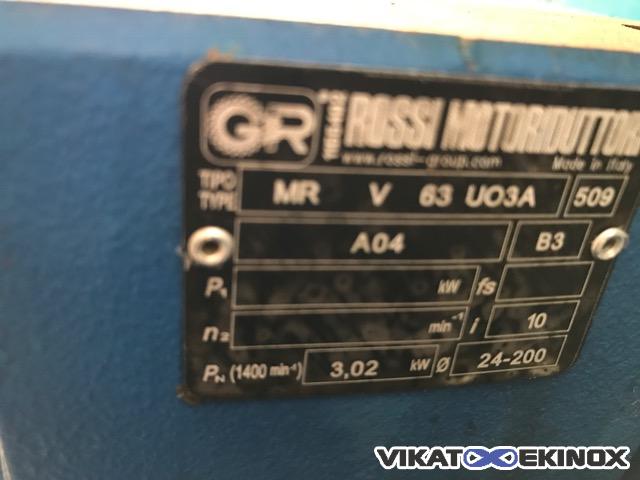

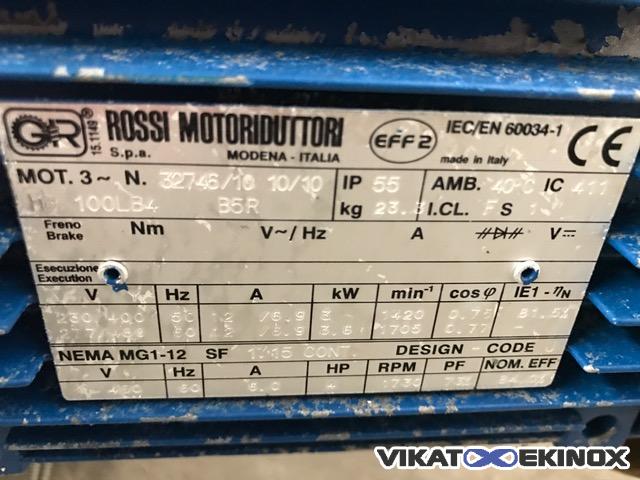

Power 3 kw 1420 rpm
Screw speed : 142 rpm

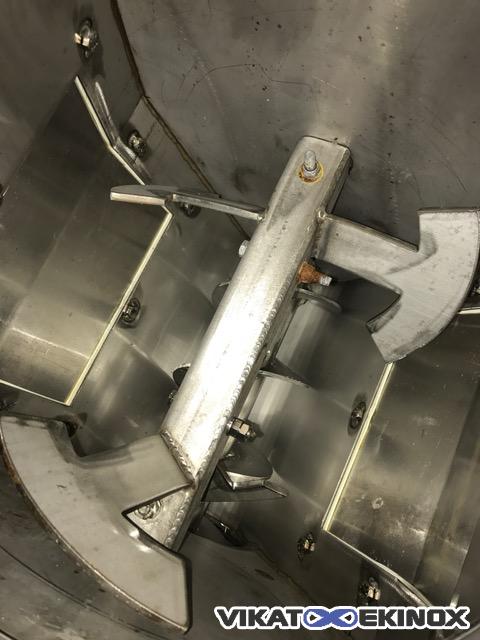

Shredder speed : 32 rpm
Trough width 155 mm
Trough length : 1940 mm + shredder 340 mm = 2280 mm
Inlet Ø 300 mm - Outlet Ø 150 mm
Overall length 2800 mm
Thickness of turns 5 mm - pitch between turns 140 mm
Power 3 kw 1420 rpm
Screw speed : 142 rpm
Shredder speed : 32 rpm
