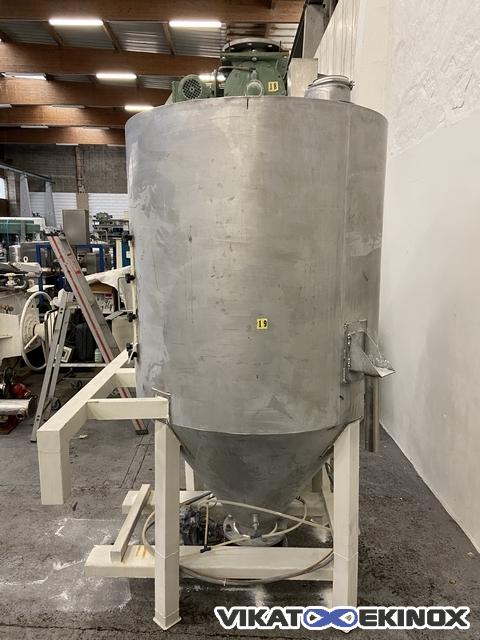

Stainless steel hopper 1650 litres
+2
See all
1 / 8
Tank Ø 1200 x inside height 1950 mm
Height of shell 1250 mm

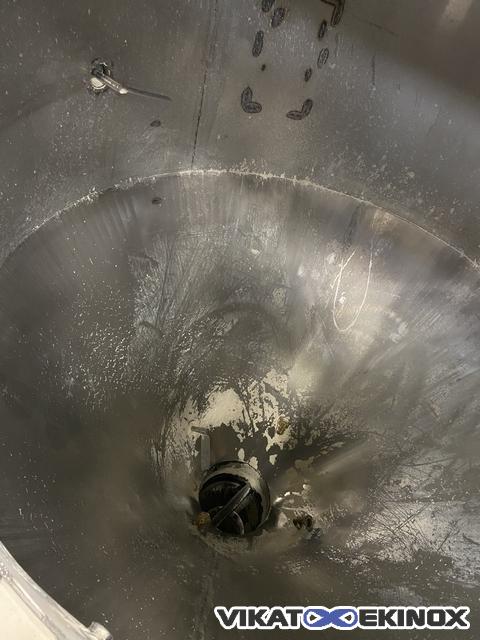

Height of conical bottom 700 mm
Upper inlet dim. 200 x 200 mm

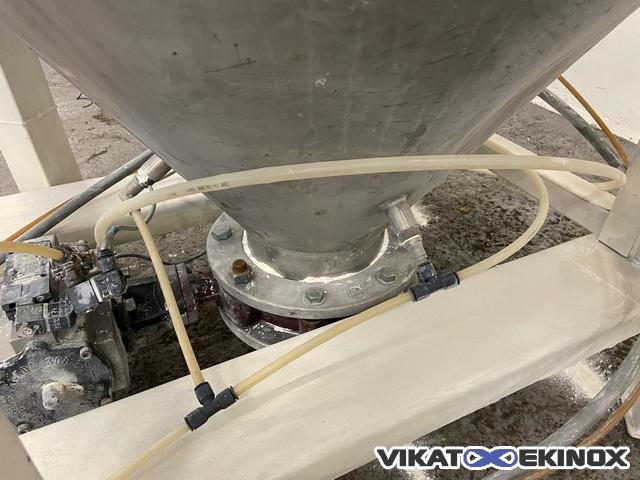

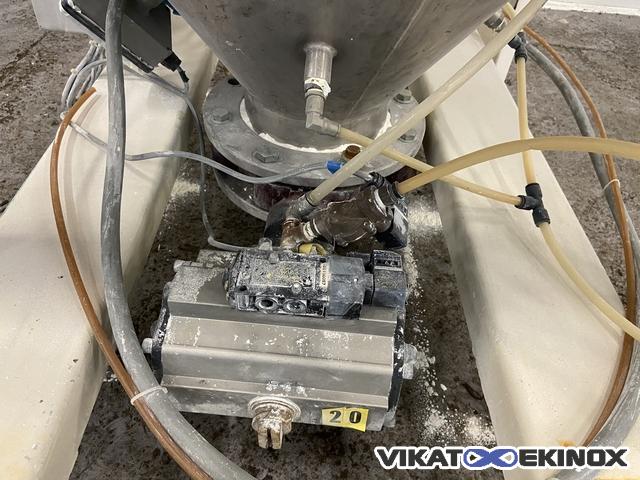

Outlet Ø 200 mm with valve

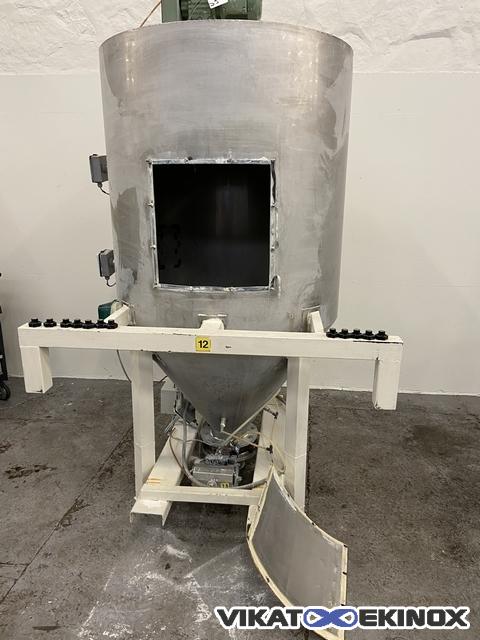

Side door 500 x 500 mm
On frame
Blowing nozzle on cone bottom
Overall dimensions without rotary valve : 1550 x 1400 x Ht 2350 mm

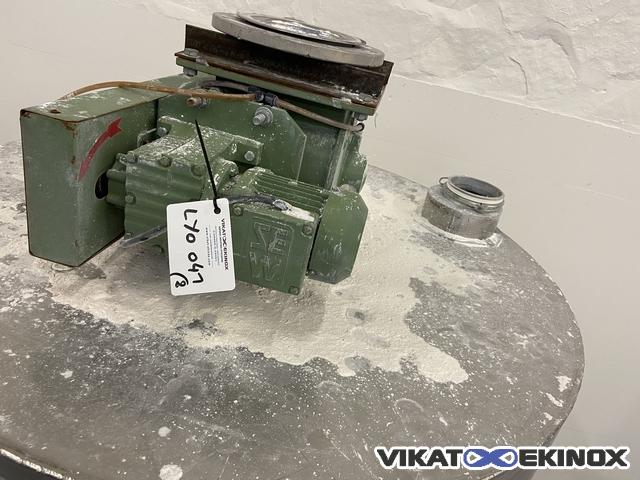

Rotary valve LYO 041 (optional part)
Height of shell 1250 mm
Height of conical bottom 700 mm
Upper inlet dim. 200 x 200 mm
Outlet Ø 200 mm with valve
Side door 500 x 500 mm
On frame
Blowing nozzle on cone bottom
Overall dimensions without rotary valve : 1550 x 1400 x Ht 2350 mm
Rotary valve LYO 041 (optional part)
