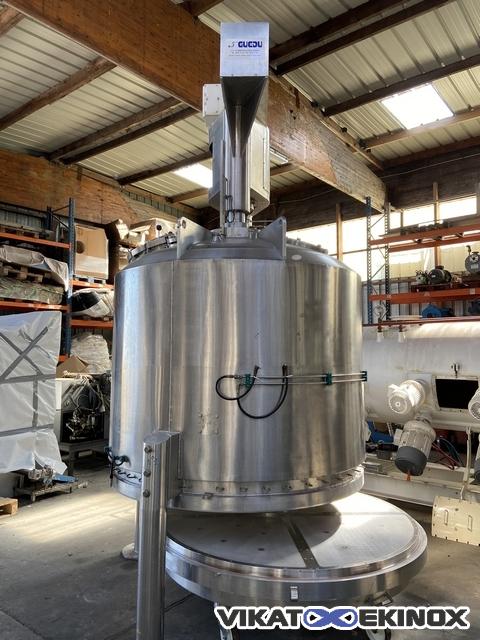

ML3000 GUEDU agitated filter 5525 litres
+2
See all
1 / 8
Brand : GUEDU - DE DIETRICH PROCESS SYSTEMS
Stainless steel grade 316L – Z3CND17.11.02
Tank capacity 5525 litres – Working pressure : -1 / 4 bars
Double jacket 110 litres – 6 bars and insulation

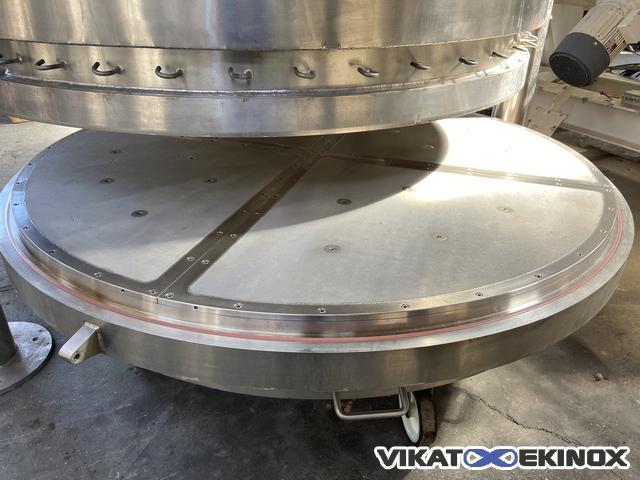

Removable filtering bottom Ø 2000 mm with jacks

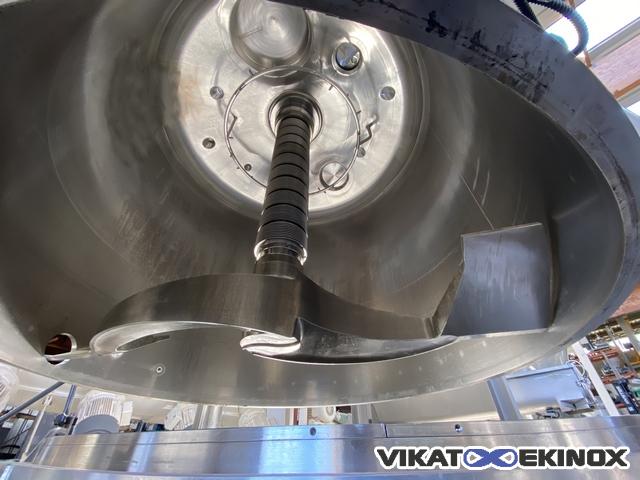

Propeller type agitator with hydraulic lifting

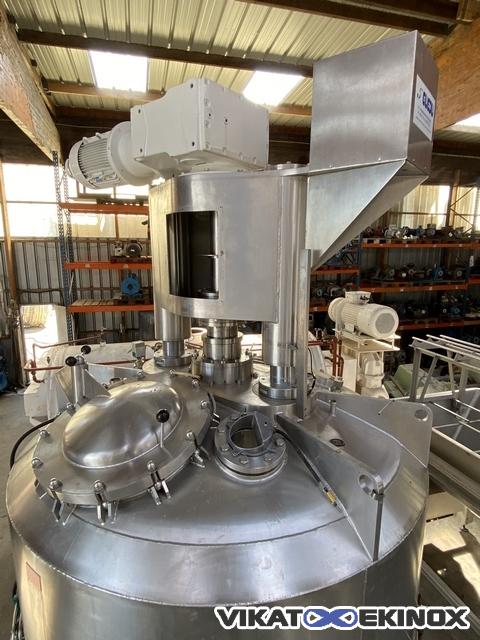

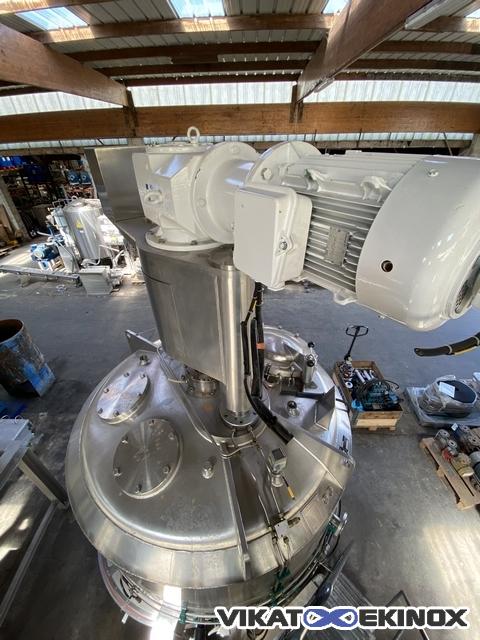

Motor 18,5 KW – Gear reducer 27 rpm
Discharge Ø 135 mm with valve
Supplied with hydraulic unit
Overall dimensions : 2600 x 2200 x Ht 4350 mm approx.
With technical documents
