Mixing S/S tank 7600 litres
+3
See all
1 / 9
Tank inner Ø 2200 mm
Inside height 2150 mm
Height of shell 2000 mm

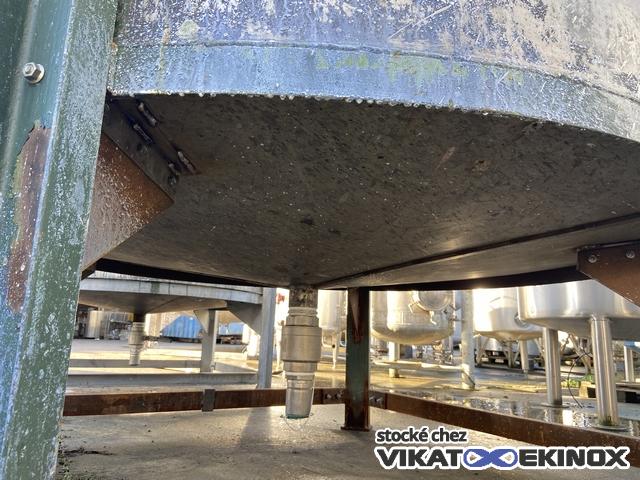

Conical bottom

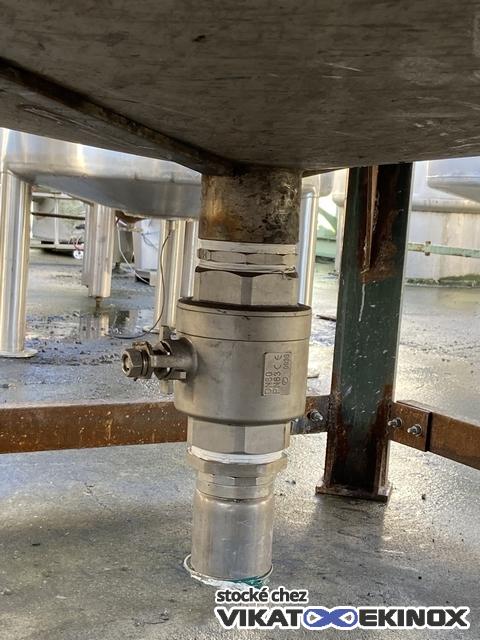

Central outlet - valve DN80

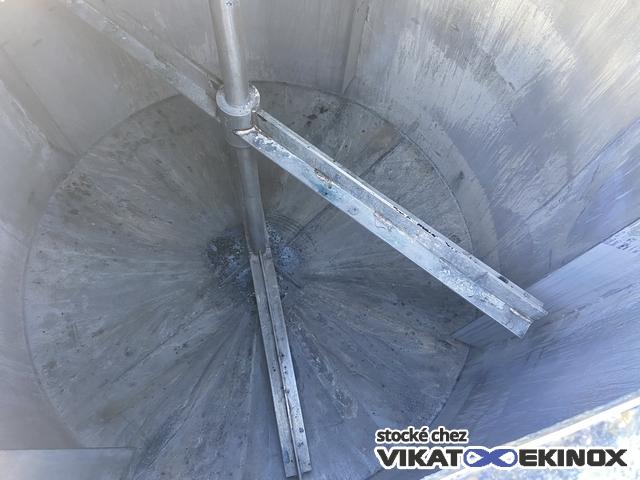

Agitator with 2 stages of blades - 4 baffles

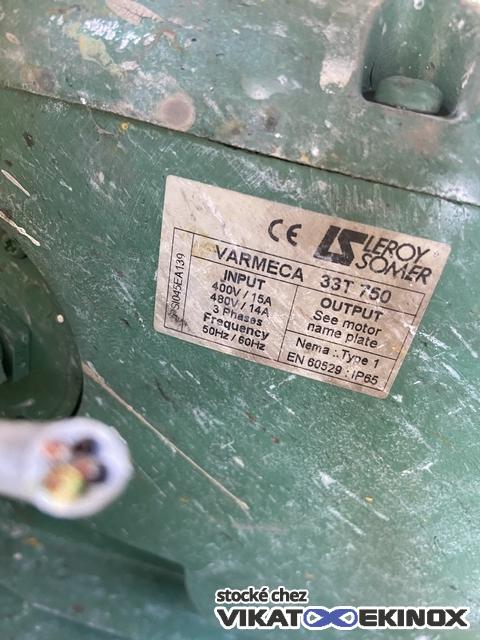

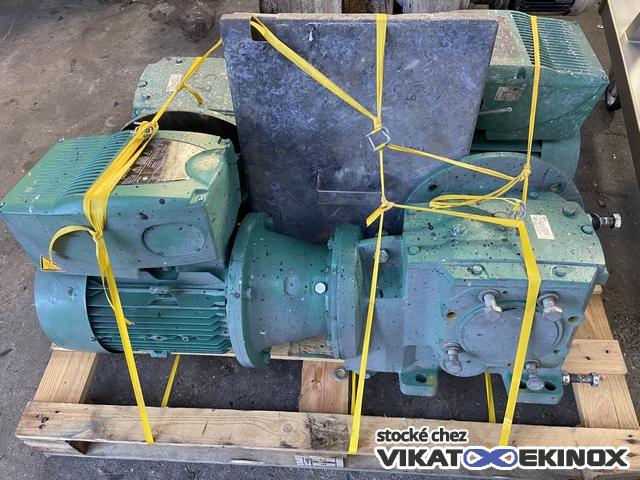

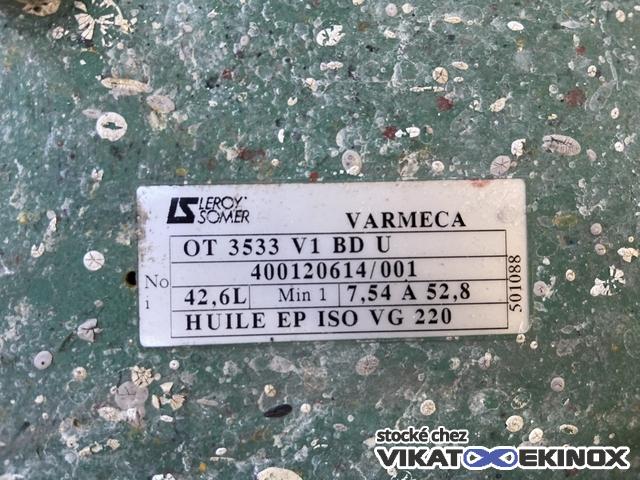

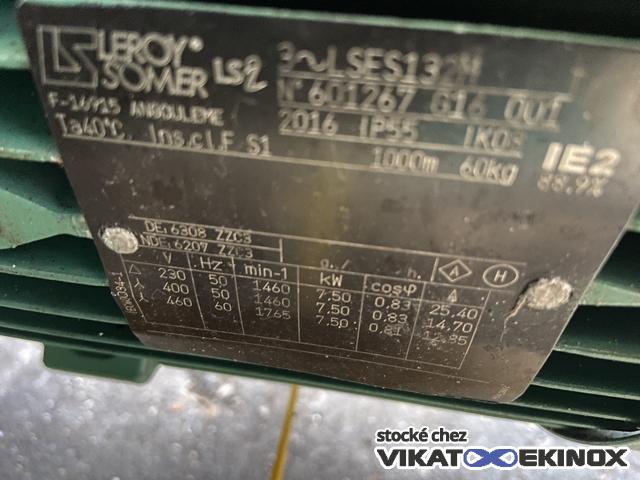

7,5 kw variable speed motor 7,54 to 52,8 rpm
Overall dimensions : 2400 x 2400 x Ht 3075 mm (tank) +H. 300 mm (geared-motor)
Equipment will be cleaned and tested after receipt of the order
Inside height 2150 mm
Height of shell 2000 mm
Conical bottom
Central outlet - valve DN80
Agitator with 2 stages of blades - 4 baffles
7,5 kw variable speed motor 7,54 to 52,8 rpm
Overall dimensions : 2400 x 2400 x Ht 3075 mm (tank) +H. 300 mm (geared-motor)
Equipment will be cleaned and tested after receipt of the order
