Ref. : THO 035
Stock : 3

Dimensions of tank 1300 x 1300 mm
Height of shell : 700 mm
Height of pyramidal bottom : 850 mm
Upper inlet Ø 495 mm with side door and dedusting inlet
Bottom discharge Ø 195 mm with valve
Knife-gate trapdoor

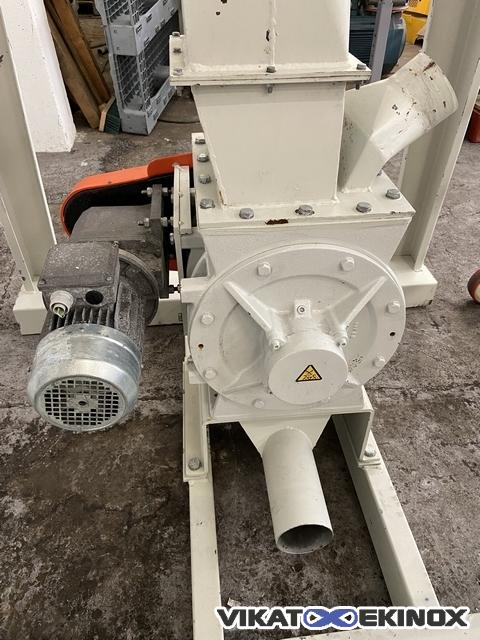

Rotary valve with geared-motor and side outlet for pneumatic transfer
Overall dimensions : 1350 x 1350 x Ht 3715 mm
